Wheel Harmonic Measuring Machines

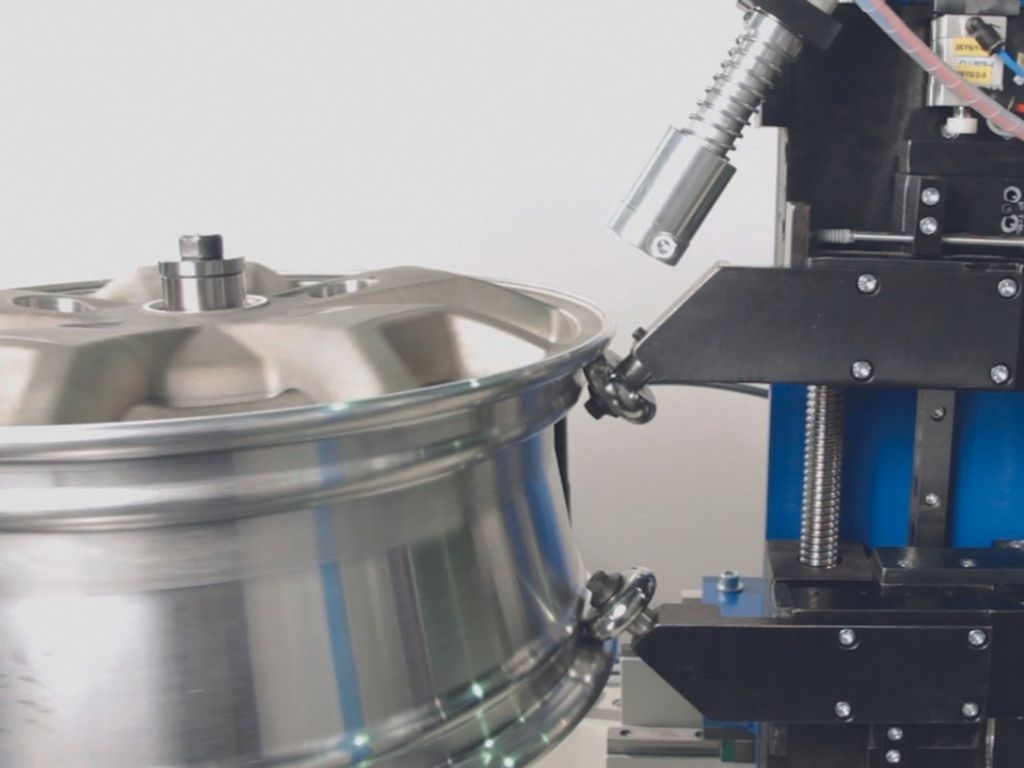

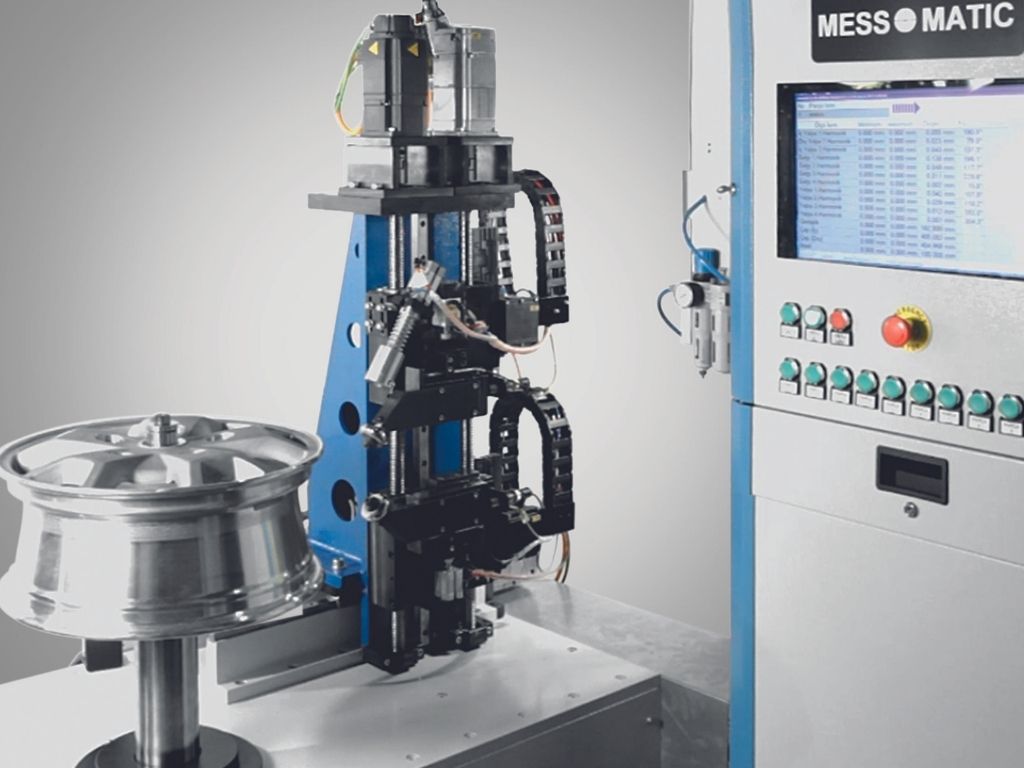

Messmatic wheel harmonic measurement machine is specially designed for measuring the radial/lateral run-out, and harmonic results of the automotive group wheels. The loading/unloading of the wheels is performed by the operator manually or automatic by a robot/conveyor system optionally. The measurements are done by probes touching from different points.
• Professional Design
• Entrance/Exit Conveyor System
• Automatic Loading/Unloading System / Robot
Technical Specifications
Downloads
Videos
More Information
| Technical Specifications | Unit | |
| Main Motor | AC Motor | |
| Automatic Loading - Unloading | Optional | |
| Clamping | Pneumatic | |
| Marking | Optional | |
| Maximum Wheel Weight | kg | 50 |
| Wheel Diameter | inch | 14" - 24" |
| Cycle Time | sec. | 15 sec. |
