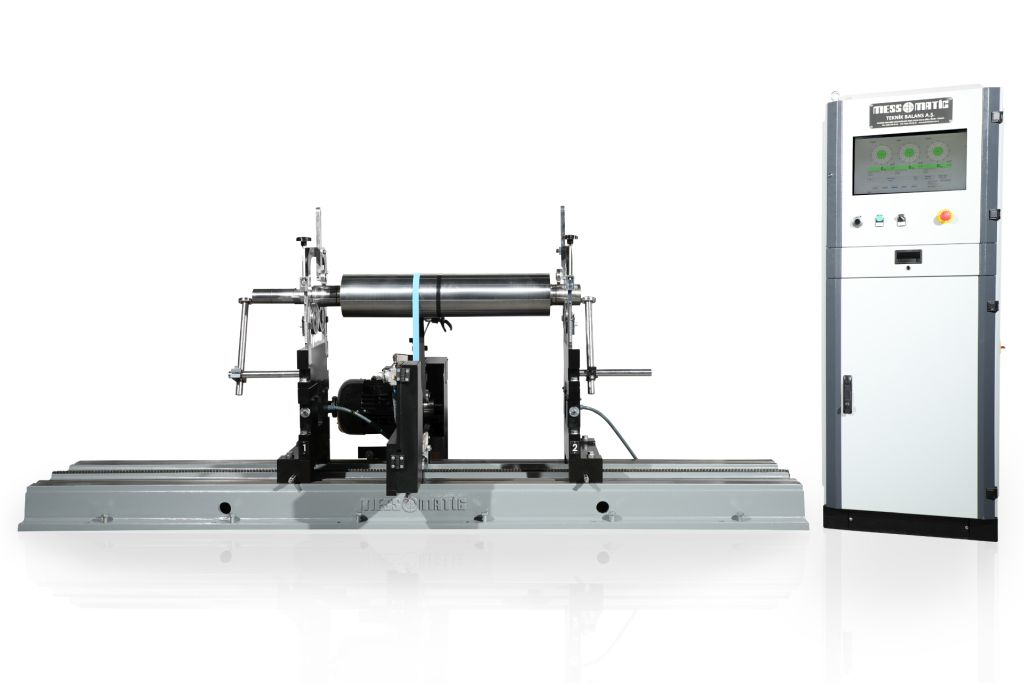

SYM 5000 Horizontal Balancing Machines

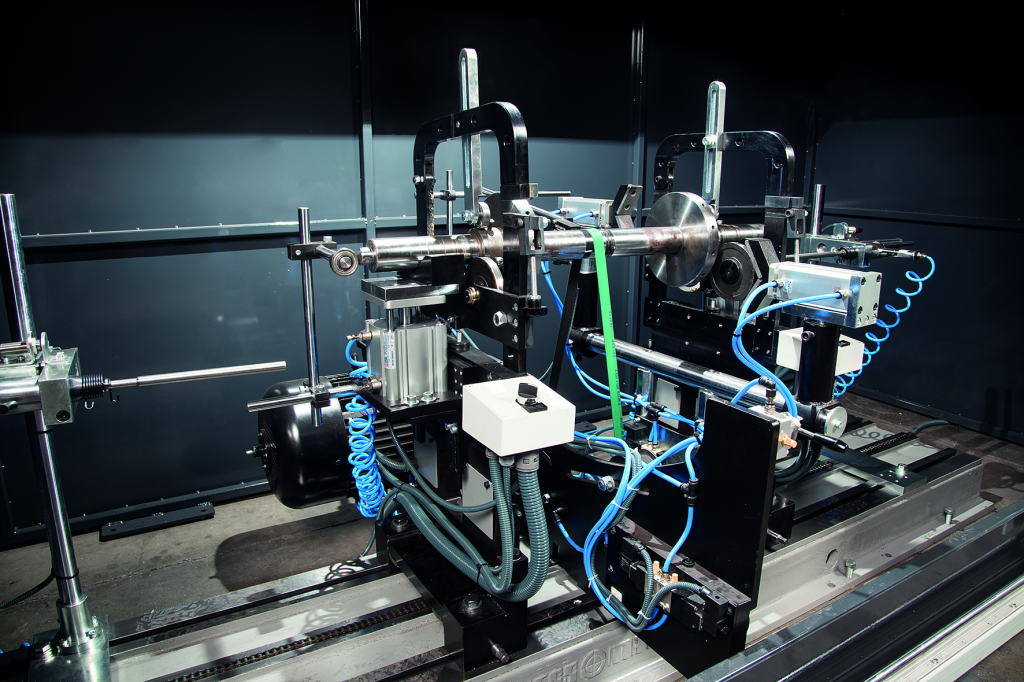

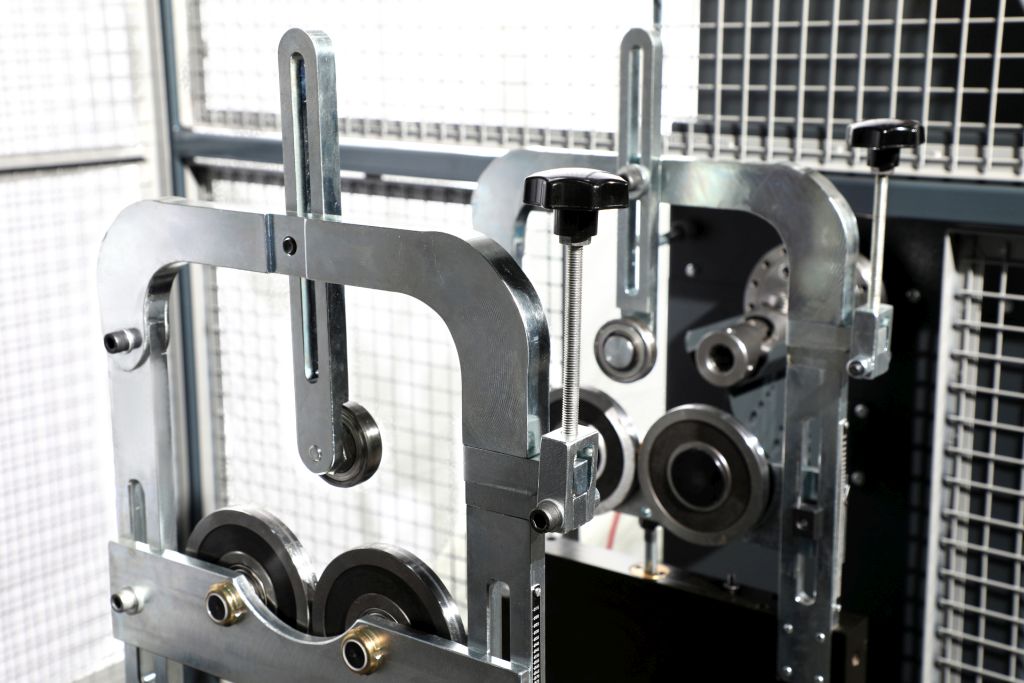

SYM 5000 series horizontal balancing machines are innovatively designed for balancing operations of various rotors between 2 – 1.100 kg, with cardan or belt drive system. By help of 2 universal rigid type pedestals having vibration sensors, bearings, and protection cover, cylindrical rotors having their own shaft journals and disc shaped rotors on balancing arbors can be balanced with high balancing accuracy.

These machines are used for balancing in horizontal axis of fan, pump shaft, alternator, bobbin, train wheel, cylinder, shaft, mill, roller, rotors of electric motor, turbine, agricultural and textile machines etc. Optionally, horizontal or vertical axis working manual drilling unit can be mounted on the system and all over the balancing machine can be surrounded by switch controlled protection cage according to CE regulations. With the user-friendly software, the operation is very easy

  • Manual loading & unloading
  • Automatic unbalance measurement with high accuracy
  • Manual unbalance correction (if required)

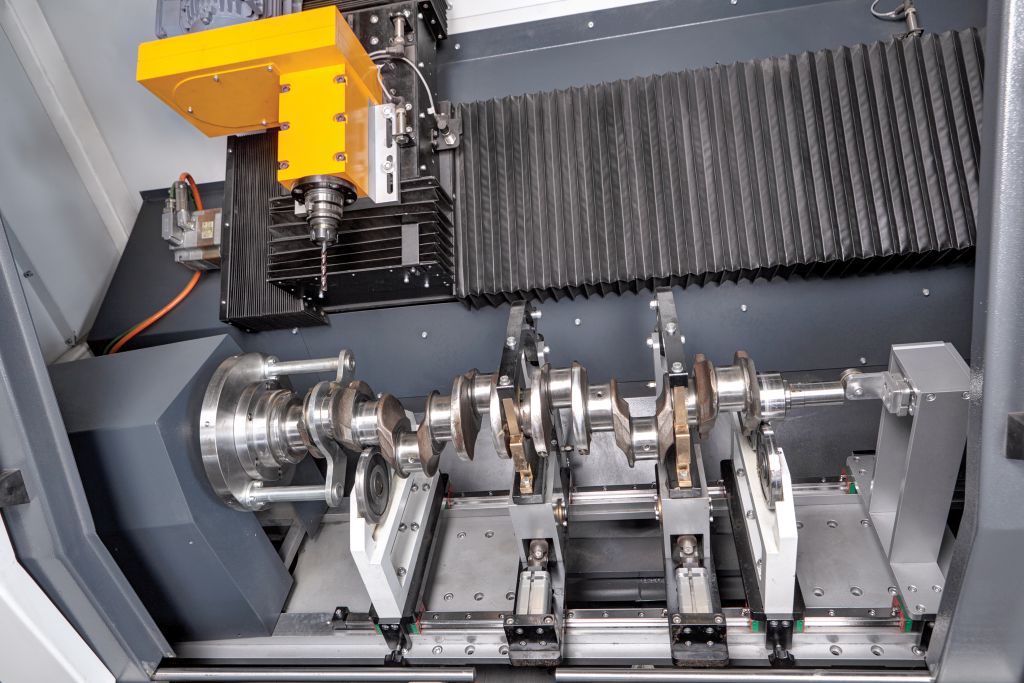

  • Unbalance correction with horizontal drilling unit
  • Unbalance correction with vertical drilling unit
  • Unbalance correction with spot welding unit

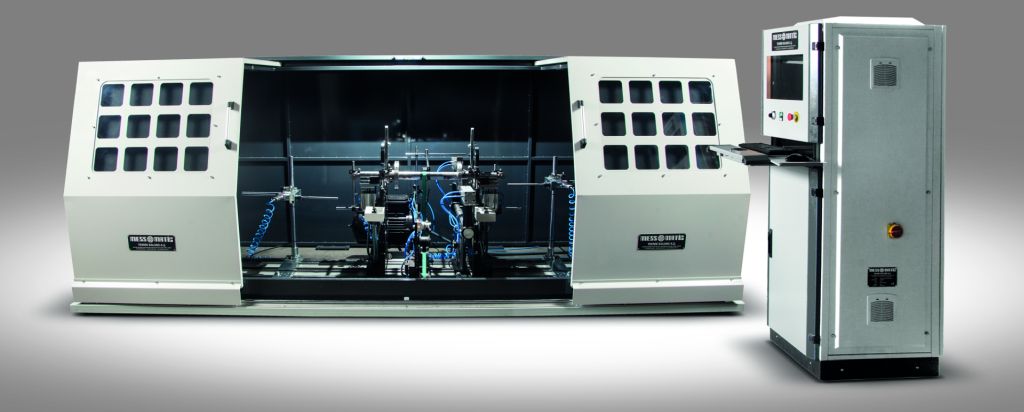

  • Switch controlled protection cage according to CE regulations
  • Additional bench

Technical Specifications



More Information

Technical Specifications Unit SYM 4500 SYM 5300 SYM 5700 SYM 5900
Maximum Rotor Weight Kg 150 300 700 1100
Minimum Rotor Weight Kg 50 100 100 100
Maximum Rotor Diameter mm 750 950 1400 1400
Bearing Diameter mm Ø12-Ø140 Ø15-Ø200 Ø15-Ø145 Ø15-Ø145
Balancing Speed (Measurable) (*) rpm 36526 36526 36526 36526
Optional Additional Bench mm 1000 1000 1000 1000
Compressed Air bar 6 6 6 6
