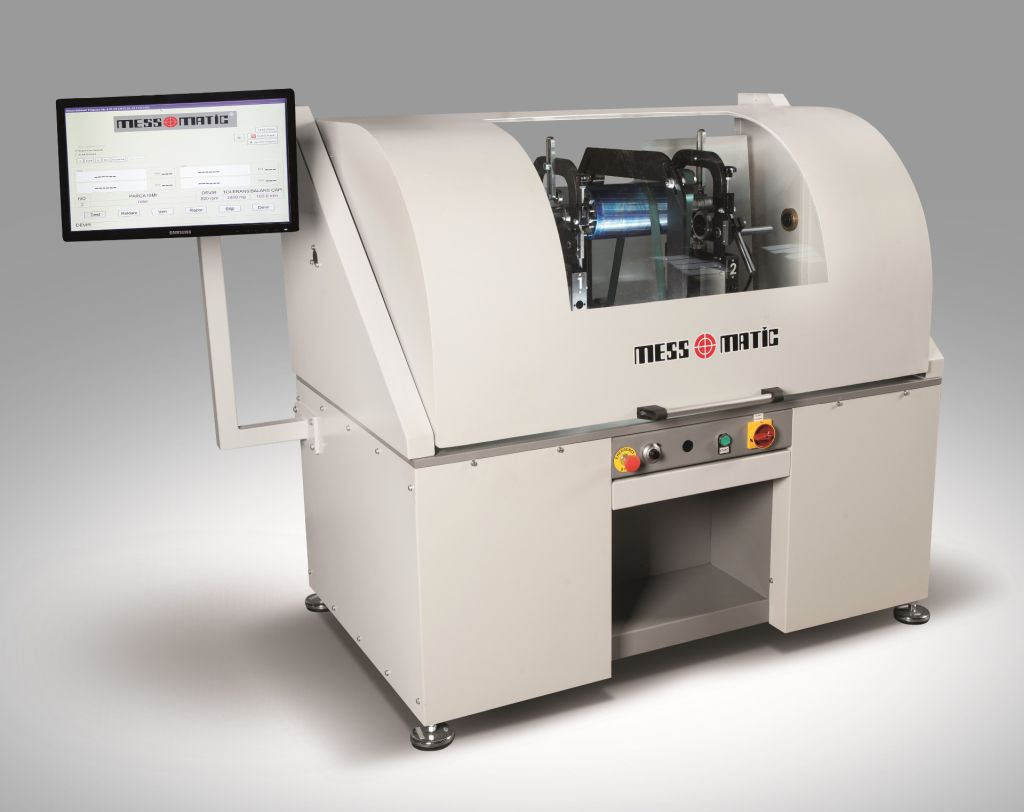

SYM 1000 Horizontal Balancing Machines

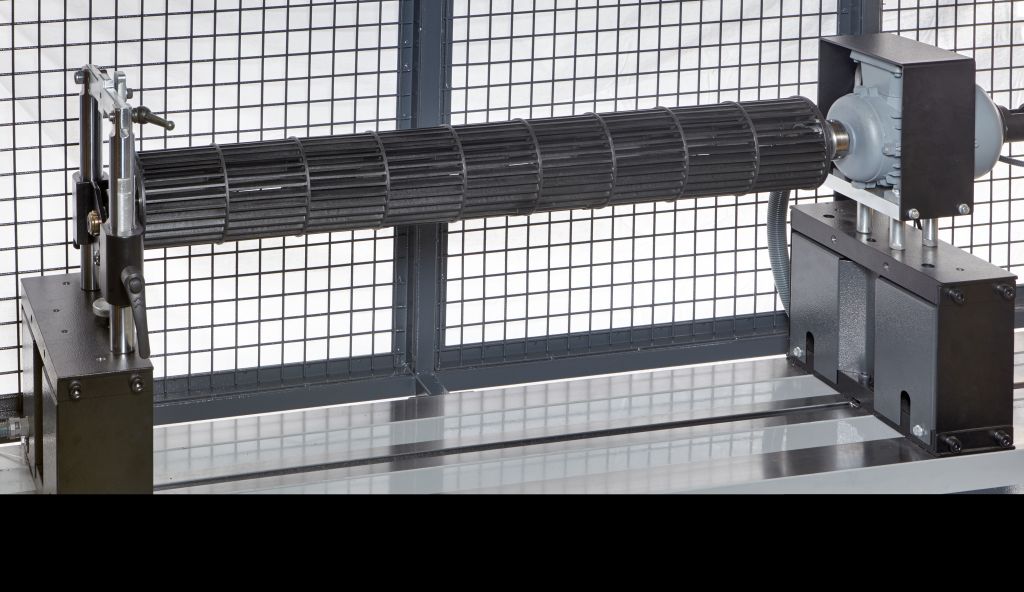

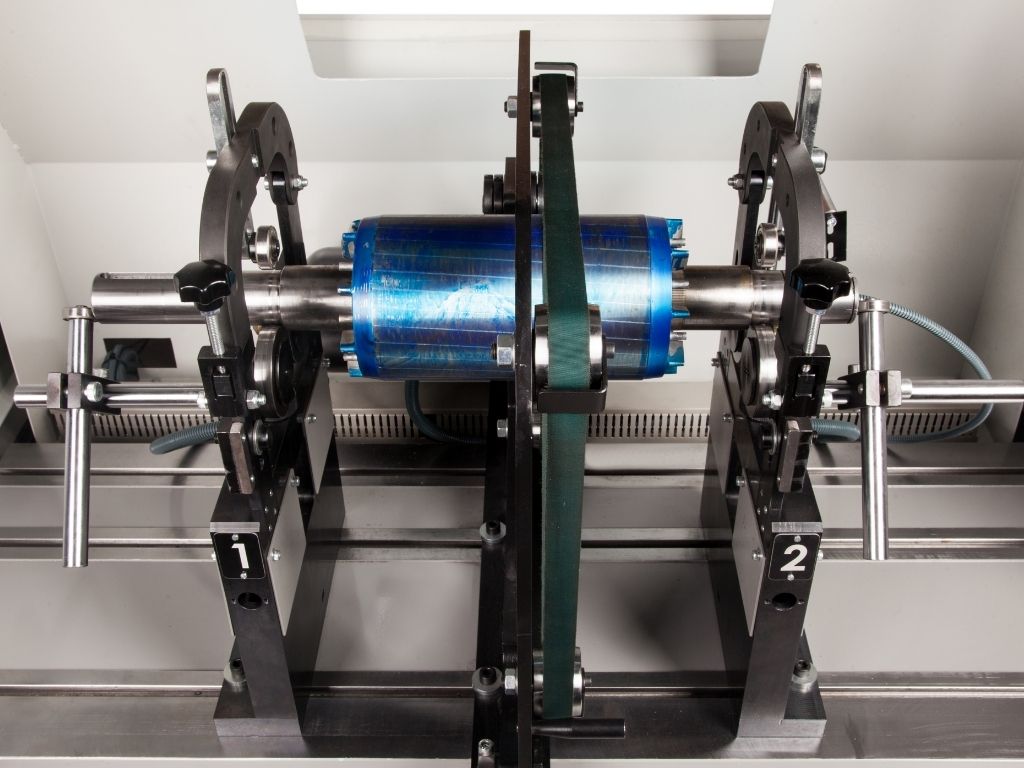

SYM series universal horizontal balancing machines are innovatively designed for balancing operations of various rotors (fan, bobbin, pump shaft, alternator, industrial roller, armature, spindle rotor, motor shaft, blower etc.) between 0,1 – 50.000 kg, with cardan or belt drive system. These machines are used for balancing in horizontal axis of cylindrical rotors having their own shaft journals and disc shaped rotors on balancing arbors, with high balancing accuracy.
Optionally, horizontal or vertical axis working manual drilling unit, spot welding unit can be mounted on the system and all over the balancing machine can be surrounded by switch controlled protection cage according to CE regulations. With the user-friendly software, the operation is very easy.
- Manual loading & unloading
- Automatic unbalance measurement with high accuracy
- Manual unbalance correction (if required)
- Unbalance correction with horizontal drilling unit
- Unbalance correction with vertical drilling unit
- Unbalance correction with spot welding unit
- Switch controlled protection cage according to CE regulations
- Additional bench
Technical Specifications
Downloads
Videos
More Information
| Technical Specifications | Unit | SYM 1000 | SYM 1030 | SYM 1075 |
| Maximum Rotor Weight | Kg | 0,1-10 | 0,2-30 | 1-75 |
| Minimum Rotor Weight | Kg | 2 | 5 | 10 |
| Maximum Rotor Diameter | mm | 300 | 300 | 400 |
| Bearing Diameter | mm | Ø5-Ø30 | Ø5-Ø30 | Ø10-Ø50 |
| Balancing Speed (Measurable) (*) | rpm | 1497496 | 1497496 | 1497496 |
| Standard Bench Length | mm | 500 | 500 | 1000 |
| Maximum Rotor Length With Standard Bench | mm | 300 | 300 | 600 |
| Motor Power | kW | 0.37 | 0.55 | 1.1 |
