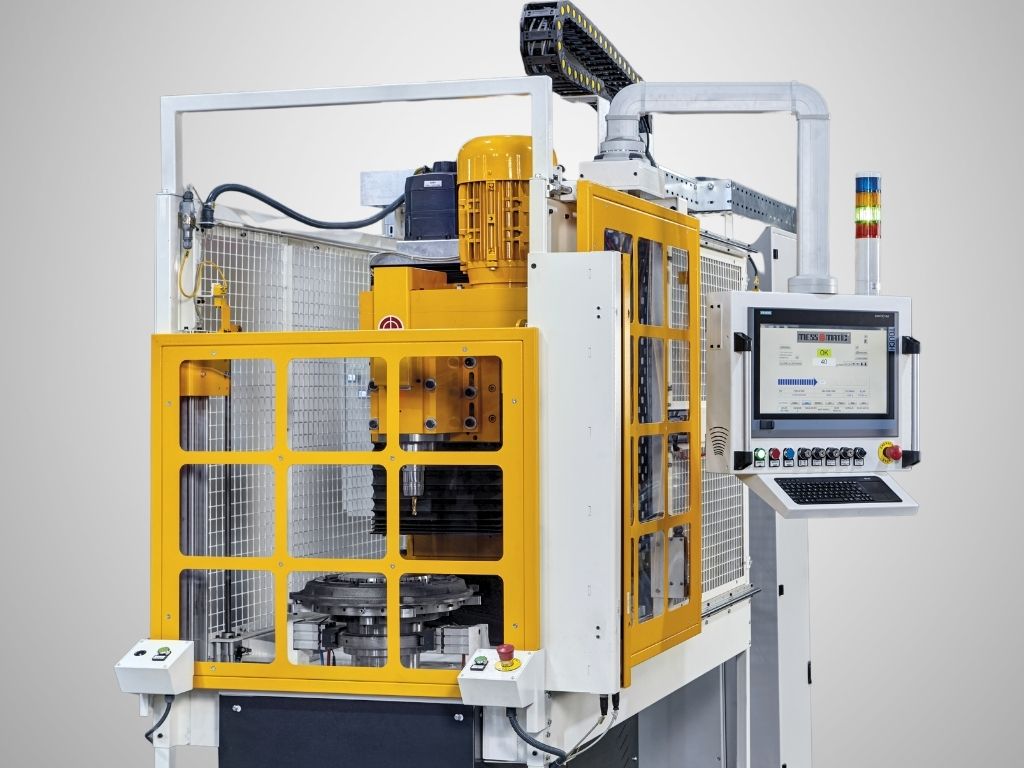

ODM Series Automatic Industrial Balancing Machines

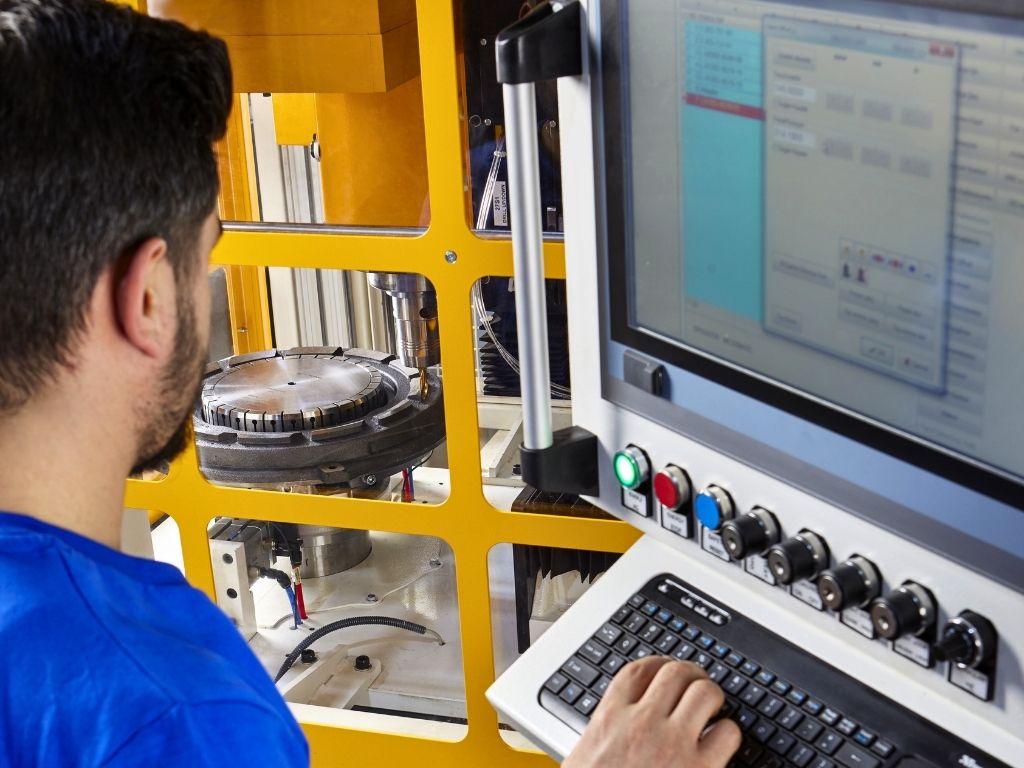

ODM series automatic vertical balancing machines are are equipped with automatic drilling unit and designed for automatic unbalance measurement and correction of various disc shaped rotors such as brake drum, flywheel, pulley, dynamic damper and pressure plate etc. These balancing machines can be used as stand alone with manual loading and unloading by a operator or can be used in an automatic balancing machine line together with robot/conveyor system for serial production. In both applications, clamping, unbalance measurement, positioning and unbalance correction of the rotors are performed automatically. Depending on the rotor, unbalance correction can be done with both vertical and or or automatic drilling unit.

  • Manual loading & unloading
  • Automatic, pneumatic clamping
  • Automatic unbalance measurement with high accuracy
  • Automatic, servo controlled indexing to the correct position
  • Automatic unbalance correction by drilling unit controlled by servo motor
  • Automatic test cycle after balancing operation

  • Automatic loading & unloading by a robot system
  • Automatic vertical or horizontal drilling unit
  • Entrance / Exit Conveyor System – Automation
  • Marking

Technical Specifications



More Information

Technical Specifications Unit ODM 21 ODM 101
Main Motor Servo Servo
Automatic Loading / Unloading System Opsiyonel Opsiyonel
Milling Unit Type Vertical & Horizontal Vertical & Horizontal
Mill Type Ø20 / Ø32 / Ø45 Ø20 / Ø32 / Ø45
Milling Unit Axis Control Automatic / Servo Automatic / Servo
Marking Optional Optional
Maximum Rotor Weight Kg 20 100
Rotor Diameter mm 200-350 200-700
