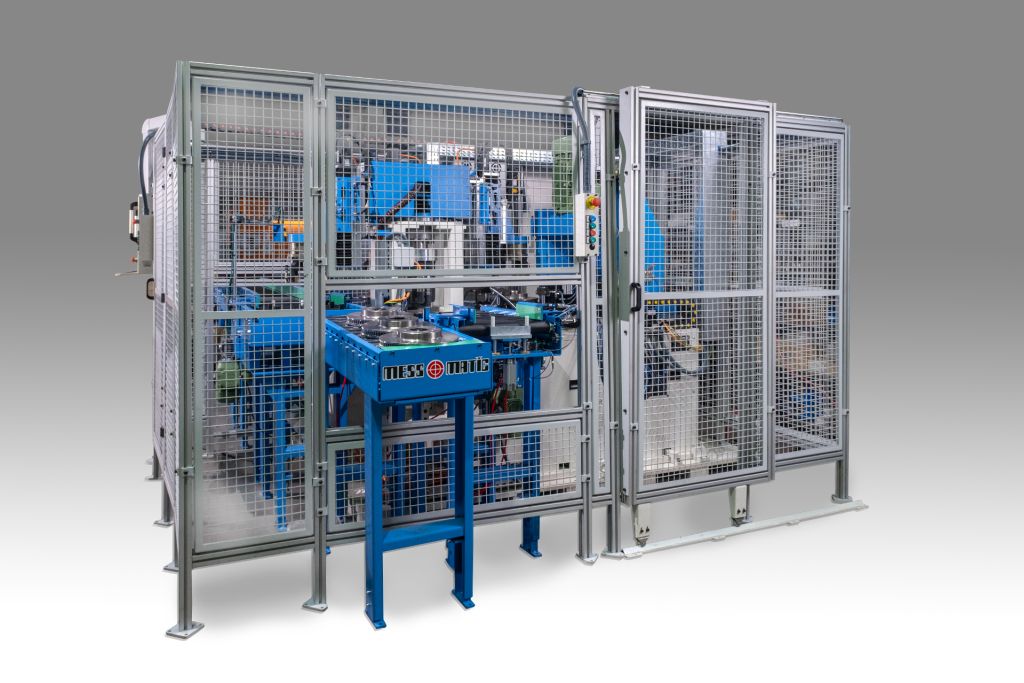

ODF Series Automatic Industrial Balancing Machines

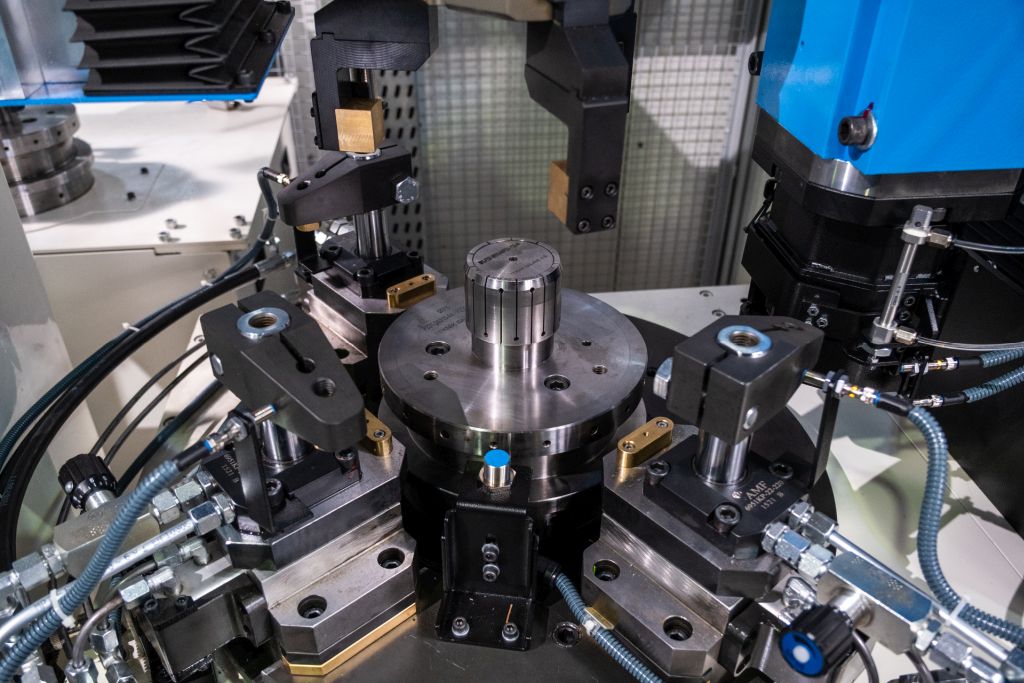

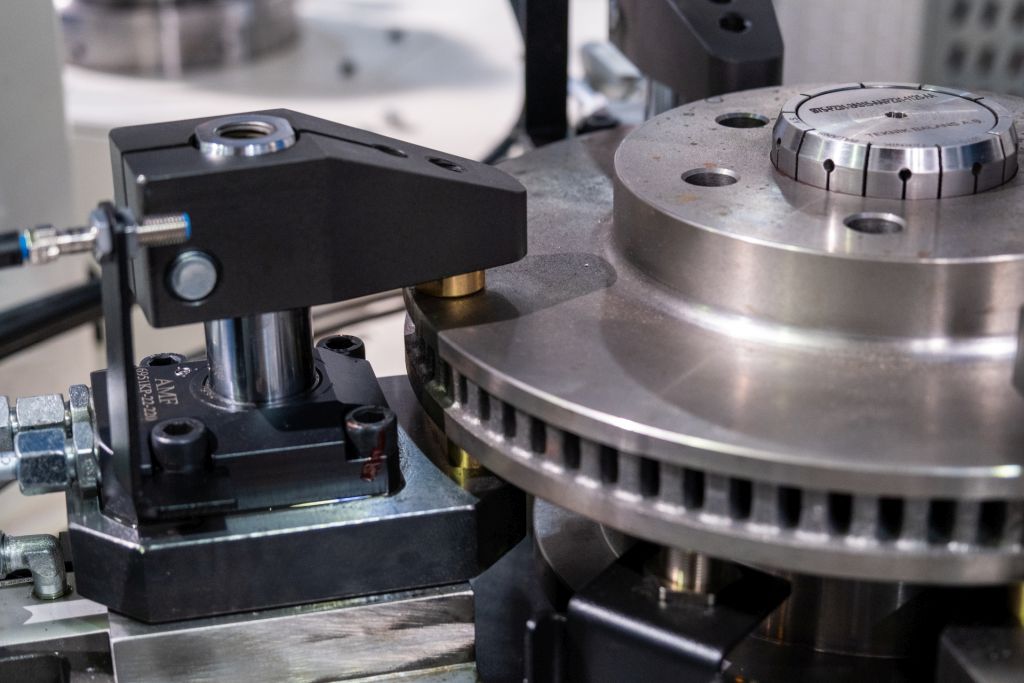

ODF Series industrial automatic vertical balancing machines are equipped with automatic milling unit and designed for balancing of automotive brake disc, train brake disc, rail wheel, drum, drum brake, differential case, tube yoke, pump impeller, pump impeller, clutch components etc. These machines are suitable for serial production, and serving the customers fast, practical balancing solutions. Loading / unloading of the part can be done by the operator or by a robot system, automatic robot system is optional. The clamping of the part, unbalance measurement and balance correction by milling unit is done automatically.

  • Servo controlled
  • No operator need
  • Fast operation
  • No mistake operation
  • High balancing accuracy

  • Automatic loading / Unloading unit - Gantry loader robot
  • Automatic welding unit

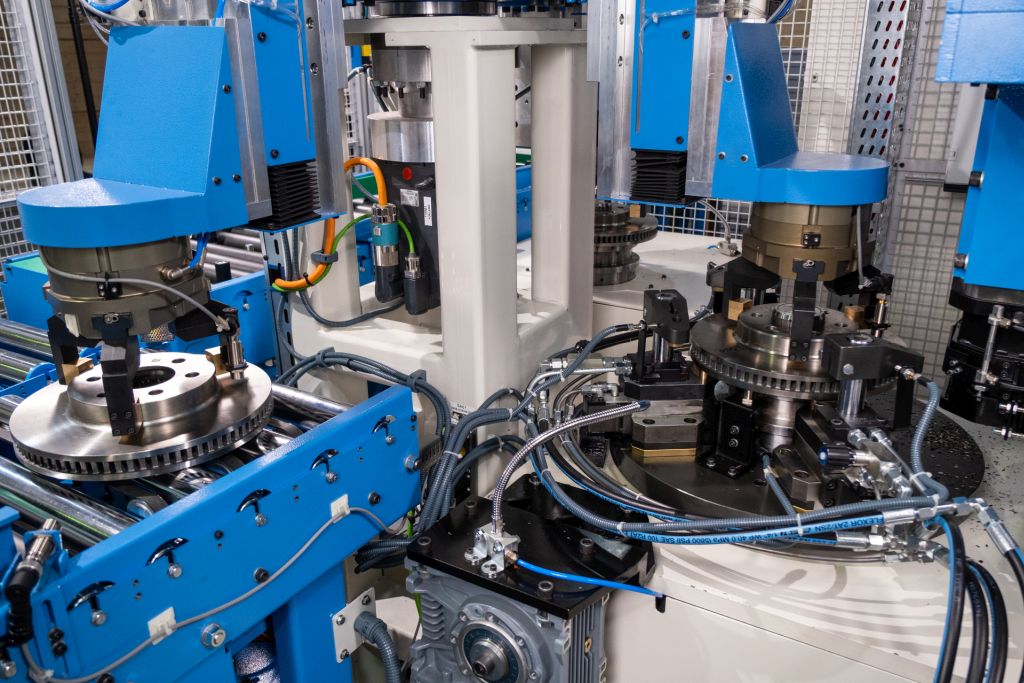

  • Automatic milling unit

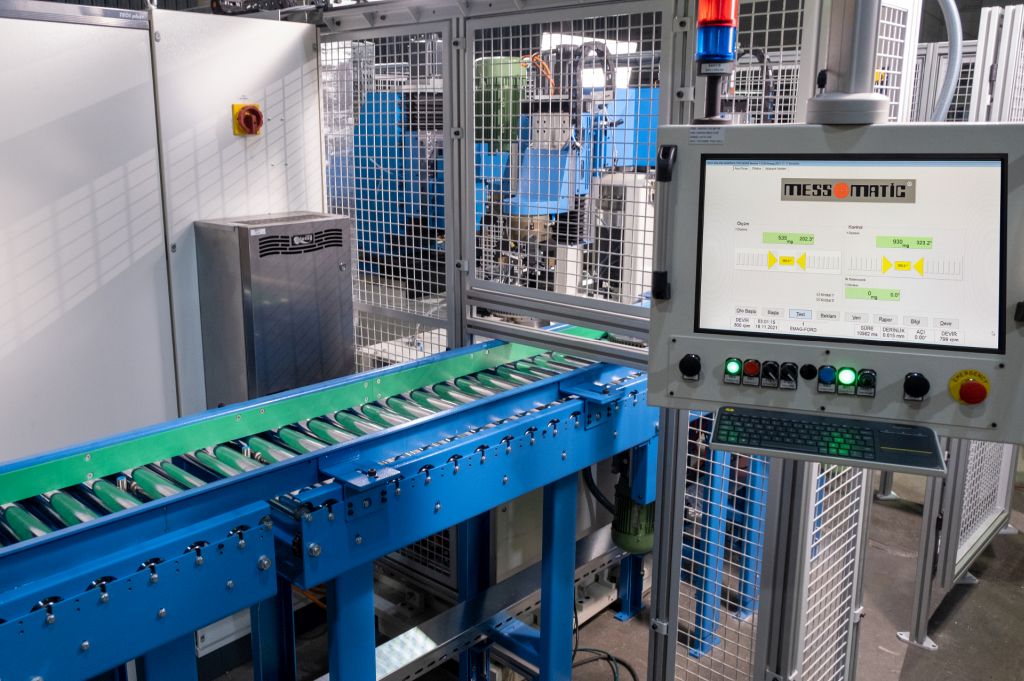

  • Entrance / Exit Conveyor System - Automation

Technical Specifications



More Information

Technical Specifications Unit ODF 21 ODF 101
Main Motor Servo Servo
Automatic Loading / Unloading System Optional Optional
Milling Unit Type Vertical & Horizontal Vertical & Horizontal
Drill & Mill Variation Ø20 / Ø32 / Ø45 Ø20 / Ø32 / Ø45
Drilling & Milling Unit Axis Control Automatic / Servo Automatic / Servo
Marking Optional Optional
Maximum Rotor Weight Kg 20 100
Rotor Diameter mm 20-350 300-1300
