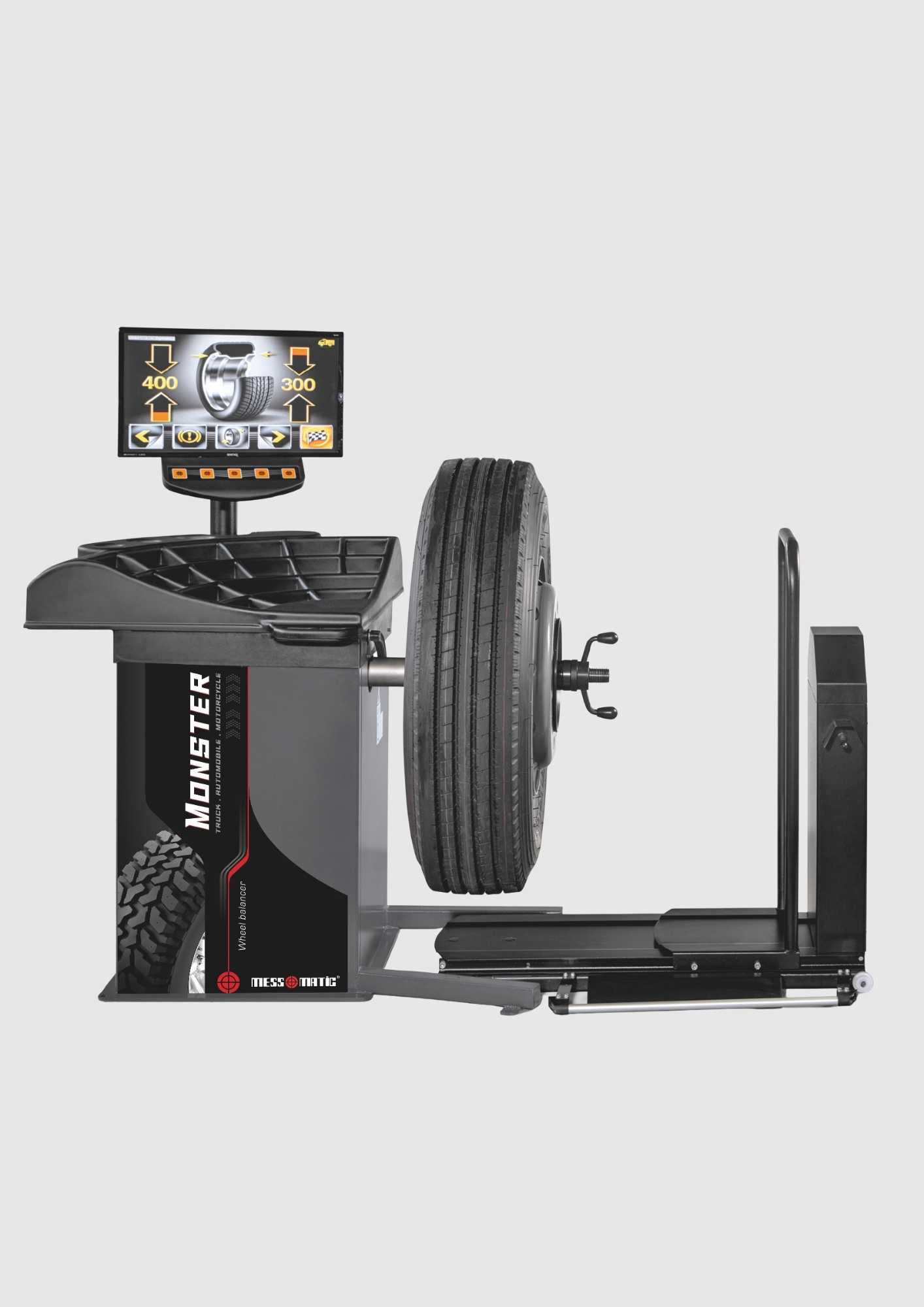

Monster - Heavy Duty Truck Wheel Balancer

Monster - Heavy Duty Truck Wheel Balancer

Heavy duty vehicle wheel balancing machine designed for heavy-duty vehicles provides a reliable and effective solution to meet the wheel balance needs of heavy-duty vehicles. With its powerful performance and excellent precision, it is an indispensable tool for increasing the efficiency of heavy-duty vehicles and ensuring vehicle safety.

Monster heavy duty vehicle wheel balancers use an air lift system not found in many other brands to assist the operator. Monster wheel balancing machine is the only domestically produced machine capable of balancing wheels for heavy-duty vehicles, trucks, buses, light commercial vehicles and cars.

Equipped with a 19” LCD screen, powerful motor, robust shaft system, and air lift, the user-friendly interface of the Monster tire balancing machine is designed as an engineering marvel. Balanced wheels are crucial for heavy-duty vehicles as they operate with high weights and travel long distances. Our specially designed wheel balancing machines, designed to maintain our standards of excellence, offer reliable and effective solutions for balancing the wheels of heavy-duty vehicles.


  • 19" LCD display
  • Easy operation via multi-functional symbols and keypad
  • Automatic start controlled by hood switch
  • Automatic pneumatic braking in unbalanced positions
  • Air lift system to lift heavy-duty vehicle tires
  • Program for concealing lead division and wheel arms behind specially developed for aluminum wheels
  • Special ALU/ALU-S/ALU-S1 programs for aluminum wheels
  • Automatic positioning of inner surface unbalance point with a single button

Technical Specifications

Downloads

Videos

More Information

Technical Specifications Unit Pro/S Plus Pro/S Raptor Hector Monster
Vehicle Type Passenger and light commercial vehicles Passenger and light commercial vehicles Passenger and light commercial vehicles Passenger and light commercial vehicles Truck, passenger and light commercial vehicles
Max. Wheel Weight kg 90 90 90 90 250
Rim Diameter inch 10" - 30" 10" - 30" 10" - 30" 10" - 30" 10" - 30"
Rim Width inch 1.5" - 20" 1.5" - 20" 1.5" - 20" 1.5" - 20" 1.5" - 20"
Cycle Time sec. 7 7 7 7 7 - 20
Rotation Speed rpm 200 100 100 100 200 rpm (for Passenger Cars) - 80 rpm (for Trucks)
Sensitivity gr 1 1 1 1 1
Power 115/230V 50/60 Hz. 115/230V 50/60 Hz. 115/230V 50/60 Hz. 115/230V 50/60 Hz. 115/230V 50/60 Hz.
Air Pressure bar 7-10 7-10 7-10 7-10 7-10
Led Light
Sonar X
Line Laser
Point Laser X X X X
Clamping Type Pneumatic Wing Nut Wing Nut Wing Nut Wing Nut
Display inch 19" 19" 19" 19" 19"
