JD Series Industrial Wheel Balancing Machines

JD Series automatic vertical wheel balancing machines are used for balance measurement of aluminium alloy and steel (sheet) wheels. These balancing machines are suitable for serial production. The loading/unloading of the wheels can be done by the operator, or automatic by robot/conveyor system. The clamping of the wheels, unbalance measurement, the OK / NOT OK exit line separation according to the tolerance are performed automatic.

• Servo controlled

• Innovative design

• High balancing accuracy

• Automatic Loading/unloading – Robot / Conveyor

• Automatic Valve Calibration

• Automatic Wheel Recognition

• Automatic Exit Line Selection (OK / NOT OK)

• Entrance / Exit Conveyor System - Automation

Technical Specifications



More Information

Technical Specifications Unit JD 50 JD 90

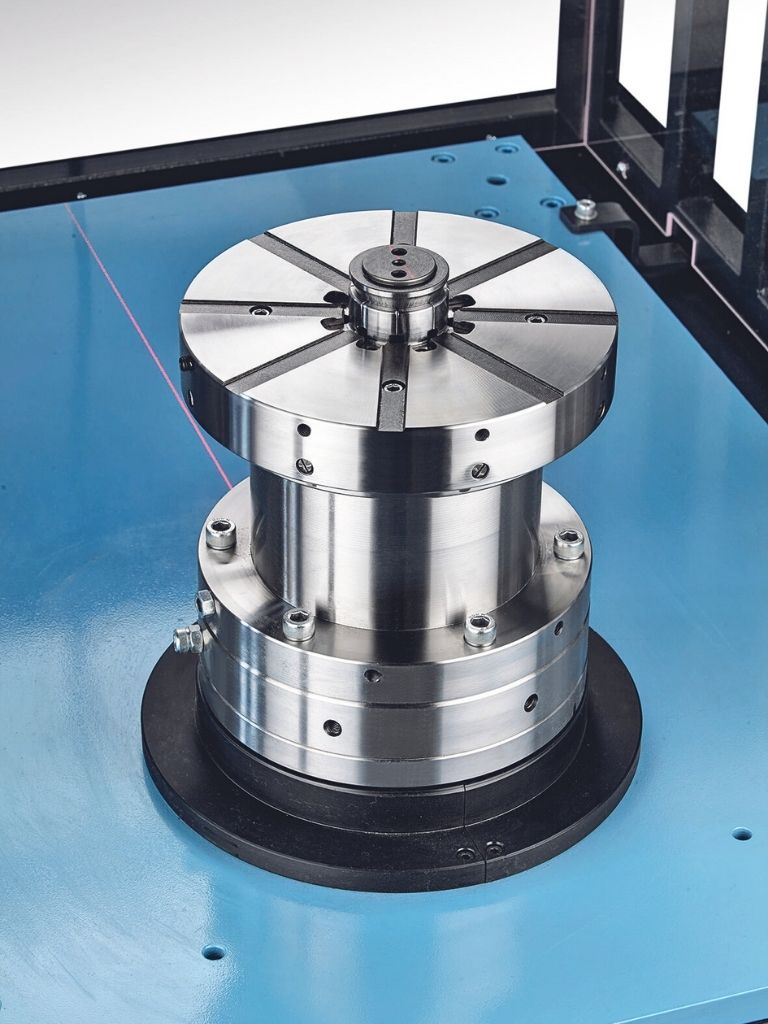

Clamping Unit Range 50-75 90-115
Robot Unit (Optional) Var Var
Marking Opsiyonel Opsiyonel
Maximum Wheel Weight max. kg 40 40
Wheel Diameter mm 10" - 24" 10" - 24"
Air Pressure bar 6 bar 6 bar
Motor Power kW 3 kW 3 kW
